Subcritical Prep-Chromatography (SCCO2) is a preparative-scale separation technique that uses carbon dioxide below its critical temperature (31.1 °C) and/or below its critical pressure (73.8 bar), meaning the CO₂ remains in a dense liquid or compressed fluid state rather than supercritical. In this region, CO₂ behaves more like a tunable liquid solvent while still maintaining low viscosity and high diffusivity compared to traditional organic solvents.

In subcritical CO₂ prep chromatography, a crude extract is injected into a packed column containing a stationary phase. Liquid or near-critical CO₂—often combined with a small percentage of a polar modifier such as ethanol—serves as the mobile phase. Compounds separate based on differences in polarity, solubility, and interaction with the stationary phase. As each compound elutes at a different retention time, it is collected in discrete fractions for isolation and purification.

Operating under subcritical conditions provides gentler thermodynamic stress, making it well suited for heat-sensitive or labile natural products. It also allows finer control over solvent strength by adjusting pressure, temperature, and modifier ratio. Compared to traditional liquid chromatography, subcritical CO₂ systems reduce organic solvent consumption, simplify downstream solvent removal (since CO₂ readily depressurizes to gas), and improve environmental and operational safety.

In practice, subcritical prep chromatography bridges the gap between extraction and final purification—offering scalable, cleaner, and highly selective compound isolation for pharmaceuticals, nutraceuticals, natural products, and specialty chemicals.

How it Works:

Add Filtration Media

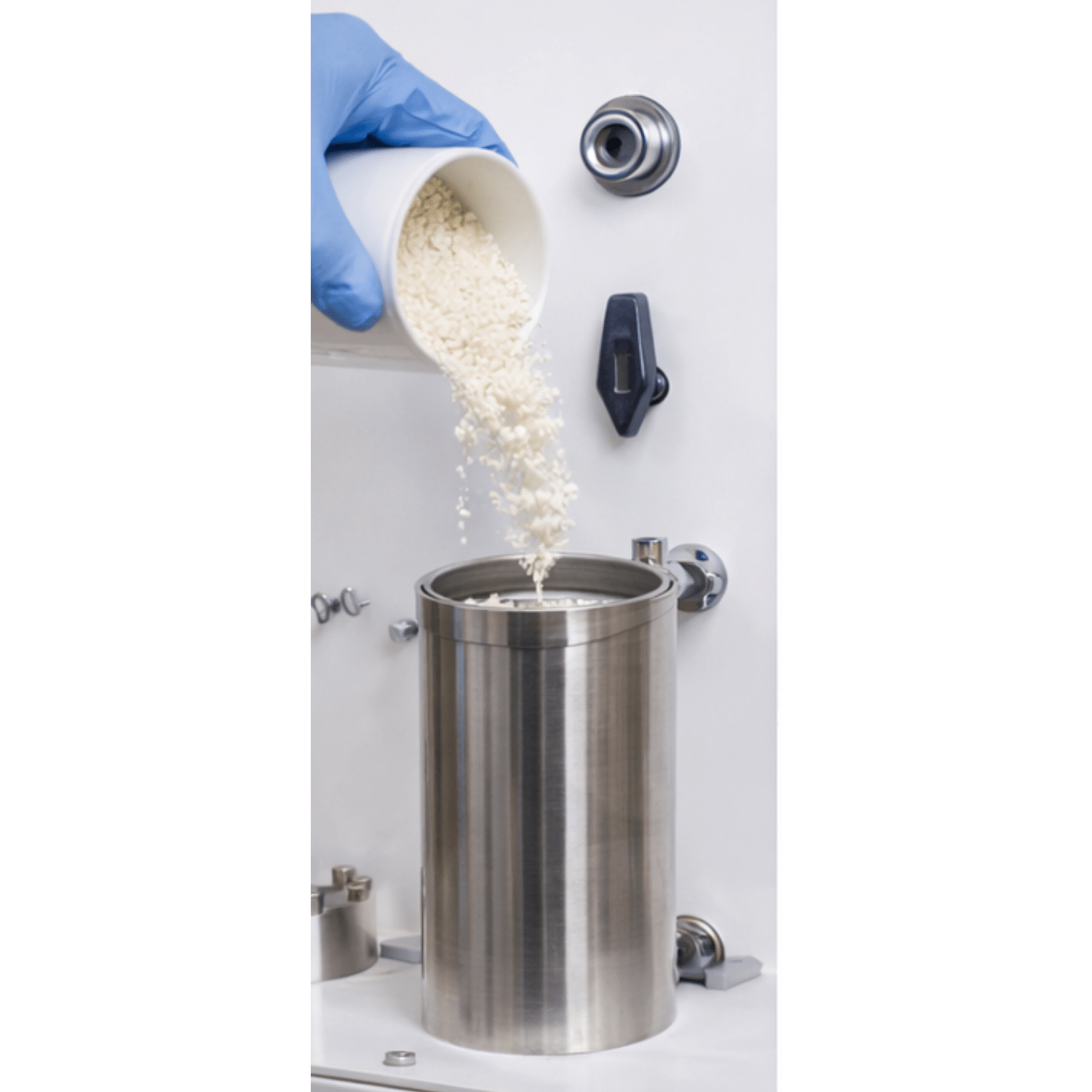

After selecting the appropriate filtration media based on your application (e.g., 60–200 mesh silica gel for fine particulate and polarity-based cleanup, activated charcoal for pigment and odor adsorption, or diatomaceous earth for depth filtration and particulate removal), ensure the process chamber on the right front of the machine is clean, dry, and fitted with the appropriate lower support frit. Slowly pour the dry media into the stainless steel process chamber, allowing it to settle evenly without creating voids or channels. Gently tap the side of the chamber to promote uniform packing and eliminate air gaps. For critical applications, lightly level the top surface using a clean stainless spatula to create a flat, consistent bed depth. Avoid overfilling; maintain adequate headspace above the media to accommodate the incoming liquid and ensure even distribution during pressurized flow. Properly packed media ensures controlled flow rate, optimal contact time, and reproducible filtration performance.

Add Feedstock

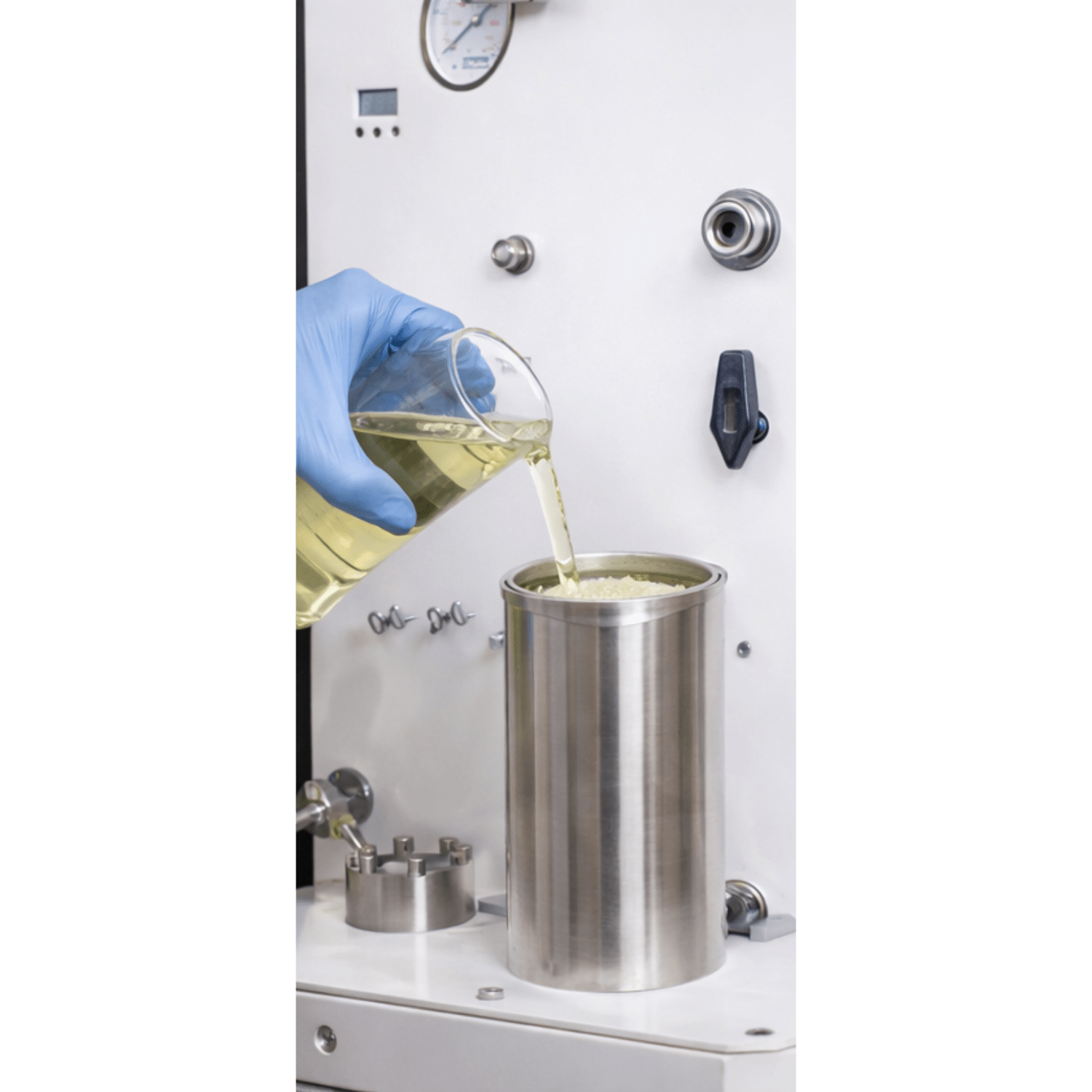

Once the filtration media bed is properly packed and leveled, introduce the liquid feedstock into the process chamber by carefully pouring it directly onto the top surface of the media bed. The liquid should be added slowly and uniformly to prevent disruption, channel formation, or localized erosion of the packed bed. Maintain a controlled pour rate to allow initial wetting and capillary infiltration of the interstitial void spaces within the media matrix. This pre-saturation step minimizes entrained air pockets and promotes uniform permeability across the bed cross-section. Ensure that the liquid level remains below the vessel rim and within designated fill limits to preserve headspace required for pressurization and controlled flow during operation. Proper loading at this stage is critical to achieving consistent hydraulic distribution, optimal residence time, and reproducible filtration efficiency.

In-line Filter Frits

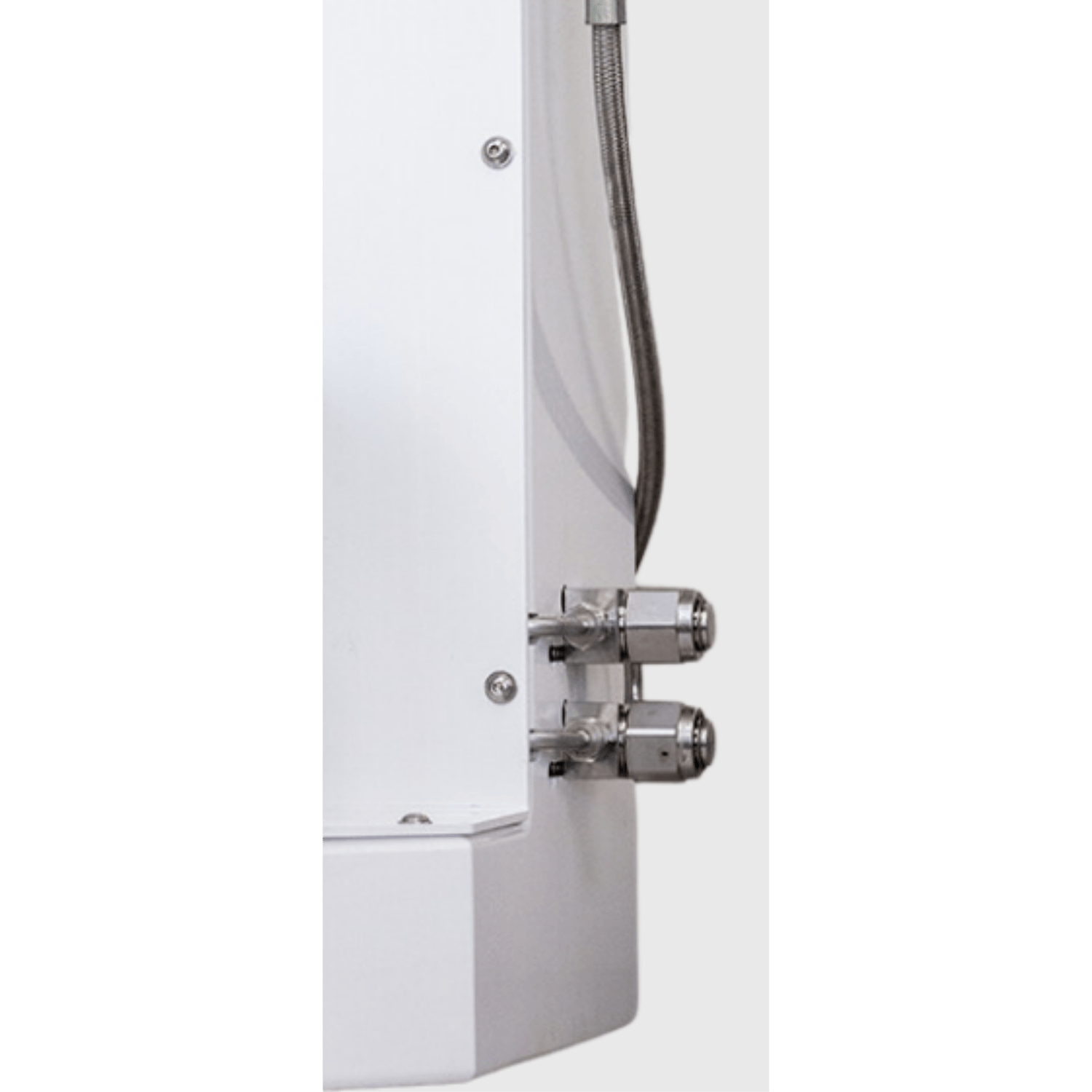

During operation, the pressurized feedstock is driven downward through the packed media bed and subsequently passes through two sequential inline stainless steel filter frits mounted on the right side of the machine. These sintered frit elements, available in pore sizes ranging from 0.3 to 400 microns, function as precision depth and surface filtration barriers. The primary frit retains any displaced media fines or particulates generated during flow through the packed bed, preventing carryover into downstream collection. The secondary frit provides final-stage clarification, removing residual suspended solids and, when appropriately sized (e.g., sub-micron range), significantly reducing microbial or pathogen load via mechanical exclusion. Together, this dual-frit configuration ensures structural containment of the filtration media while delivering a polished, particulate-controlled effluent suitable for analytical, formulation, or further processing applications.

Collect Purified Liquid

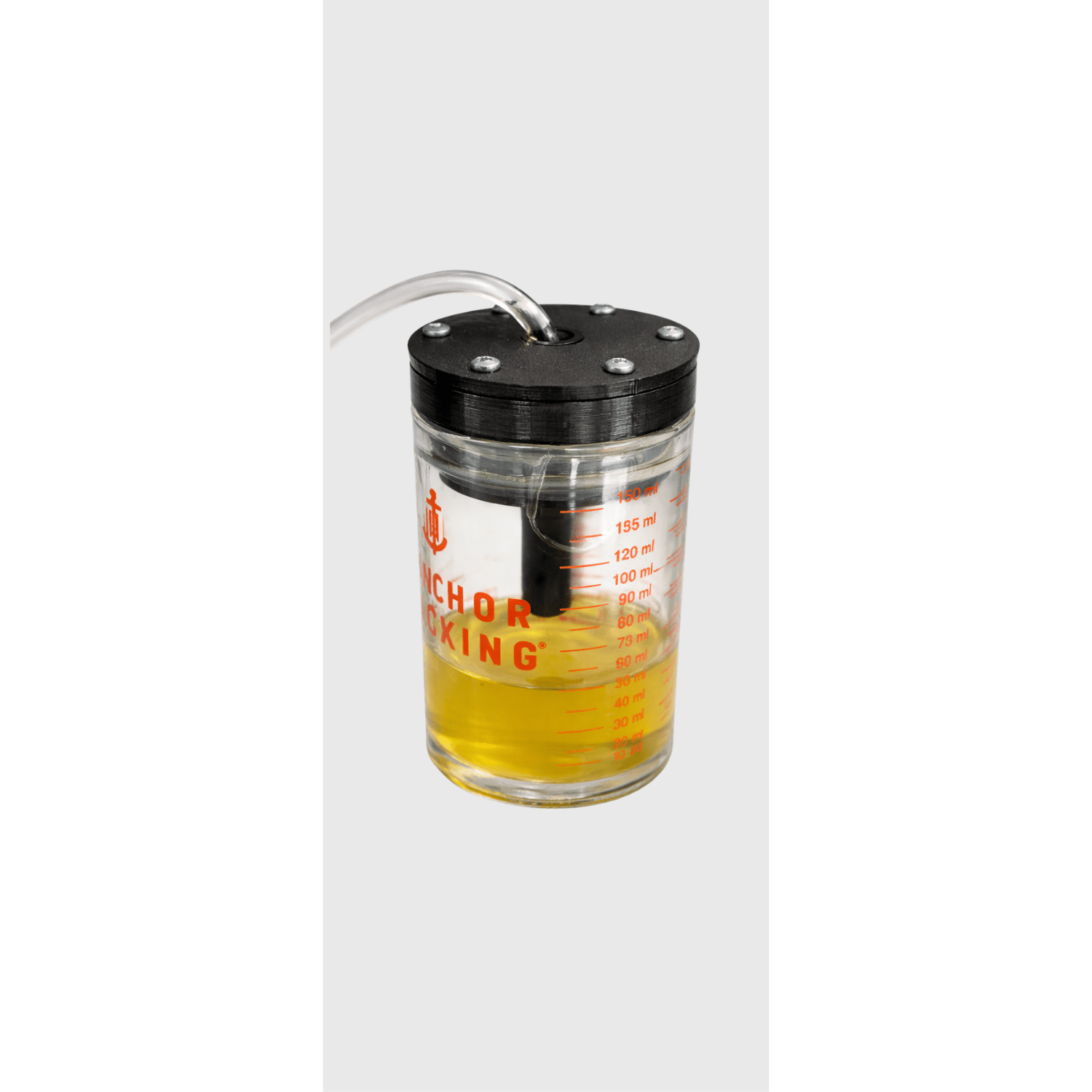

Following passage through the dual inline frit system, the clarified effluent is directed into a borosilicate (Pyrex) collection vessel positioned on the left side of the machine. The jar is fitted with a reinforced blast-shield cap assembly engineered to withstand transient pressure fluctuations while safely venting expanding CO₂ through a controlled exhaust pathway. As the pressurized stream enters the vessel, dissolved CO₂ undergoes rapid depressurization and phase expansion, separating from the liquid phase and exiting through the vent port, while the purified liquid fraction settles in the bottom of the graduated jar. This configuration enables safe pressure management, visual volume monitoring, and efficient capture of the refined product without re-entrainment of particulates, preserving clarity and compositional integrity for downstream analysis or formulation.

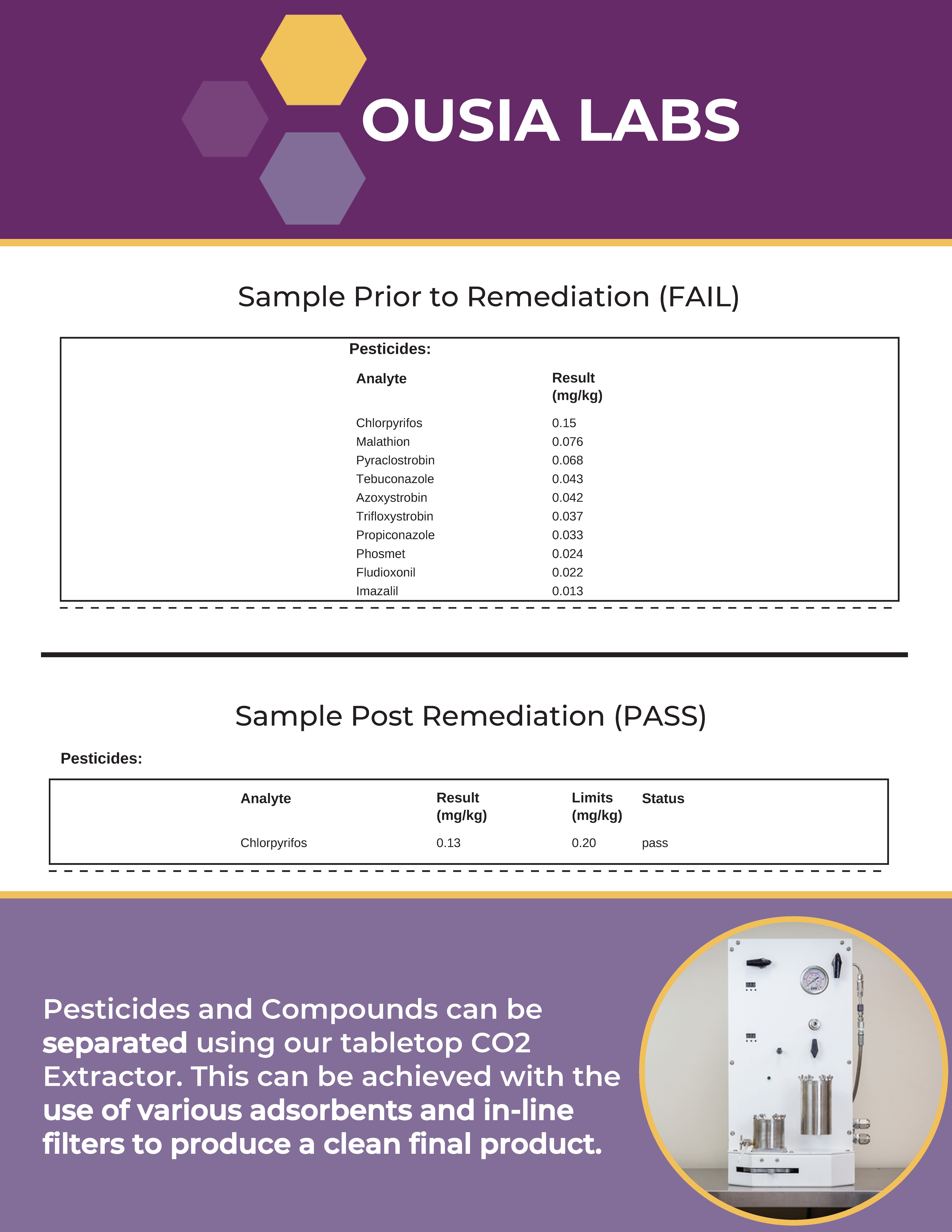

Analytical Results:

Benefits of SCCO2 Prep-Chromatography:

Strategic Advantage

Subcritical CO₂ prep chromatography combines the environmental benefits of CO₂ extraction with the precision of preparative chromatography—offering a cleaner, tunable, and scalable purification platform for pharmaceuticals, natural products, and specialty compounds.

1. Gentler Operating Conditions

Operates below CO₂ critical temperature and/or pressure
Reduced thermal stress on sensitive compounds
Ideal for heat-labile natural products, terpenes, peptides, and nutraceutical actives
Lower risk of degradation or isomerization

2. Tunable Solvent Strength

Fine control via pressure, temperature, and modifier percentage
Dense liquid CO₂ behaves like a highly adjustable solvent
Improved selectivity compared to traditional liquid chromatography
Optimized resolution without extreme pressures

3. Reduced Organic Solvent Use

CO₂ is the primary mobile phase
Minimal modifier required (EtOH, MeOH, etc.)
Lower solvent cost
Reduced hazardous waste
Easier regulatory and environmental compliance

4. Cleaner Downstream Processing

CO₂ rapidly depressurizes to gas
No solvent evaporation step required
Faster drying and product recovery
Higher purity fractions

5. Improved Safety Profile

Non-flammable primary mobile phase
Lower overall solvent inventory
Reduced operator exposure to toxic solvents

6. Faster Mass Transfer

Lower viscosity than traditional liquid solvents
Higher diffusivity
Efficient separation in shorter run times

7. Scalability

Direct bridge from extraction to purification
Easily scaled from bench to pilot to production
Compatible with integrated systems like your front-mounted packed column architecture

8. Sustainability & Green Chemistry Alignment

CO₂ is recyclable and widely available
Lower environmental footprint
Supports clean-label and green manufacturing initiatives
